EBC DPX2103 Ultimax Front Brake Pads For BMW F10 F11
124.99€
GET IN TOUCH
EBC’s DPX2103 Ultimax pads meet strict ECE R90 safety rules, so you get reliable stops every time. These pads use an organic blend with zero steel fiber, which means less brake dust and kinder treatment of your rotors. You know what? That little change keeps your wheels cleaner and cuts down on wear.
In US tests, they earn the top Code N rating for green performance and snag a rare GG friction grade. That mix delivers longer pad life, helps discs last, and releases no toxic particles. Swap in this set for a smoother brake feel and peace of mind on city streets or long cruises.
FEATURES
-
ECE R90–approved organic compound
-
Zero steel fiber for low dust and rotor care
-
Code N eco-friendly rating (USA)
-
GG friction class for top stopping power
APPLICATIONS
-
BMW / 5-Series (6th Gen) 2009–2017 / Sedan (F10) 2009–2017 / 520 2.0 Turbo 2011–2017
-
BMW / 5-Series (6th Gen) 2009–2017 / Sedan (F10) 2009–2017 / 525D 2.0 TD 2011–2017
-
BMW / 5-Series (6th Gen) 2009–2017 / Sedan (F10) 2009–2017 / 525D 3.0 TD 2010–2017
-
BMW / 5-Series (6th Gen) 2009–2017 / Sedan (F10) 2009–2017 / 528 2.0 Turbo 2011–2017
-
BMW / 5-Series (6th Gen) 2009–2017 / Sedan (F10) 2009–2017 / 528 3.0 2010–2011
-
BMW / 5-Series (6th Gen) 2009–2017 / Sedan (F10) 2009–2017 / 530 3.0 2011–2017
-
BMW / 5-Series (6th Gen) 2009–2017 / Sedan (F10) 2009–2017 / 530D 3.0 TD 2009–2017
-
BMW / 5-Series (6th Gen) 2009–2017 / Touring (F11) 2009–2017 / 525D 2.0 TD 2011–2017
-
BMW / 5-Series (6th Gen) 2009–2017 / Touring (F11) 2009–2017 / 525D 3.0 TD 2010–2017
-
BMW / 5-Series (6th Gen) 2009–2017 / Touring (F11) 2009–2017 / 535D 3.0 Twin TD 2010–2017
ADDITIONAL INFORMATION:
Manufacturer | EBC |
---|---|
OE Numbers | BMW-34116775314, BMW-34116850885 |
Package Contents | 1 set of pads for two calipers |
Brake Pads Compound | Organic |
Brake Pads Type | OEM |
Pad Quality | Standard |

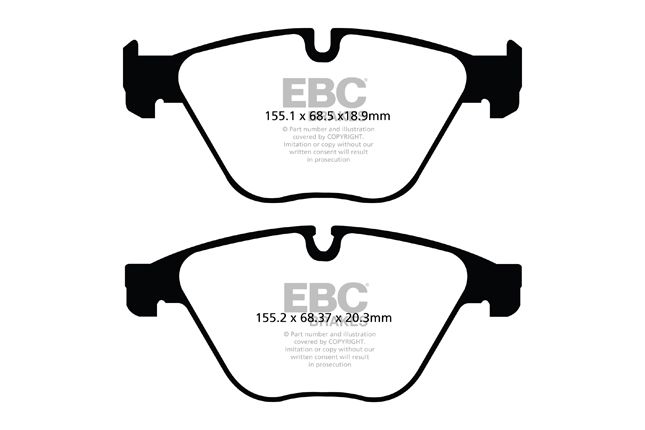

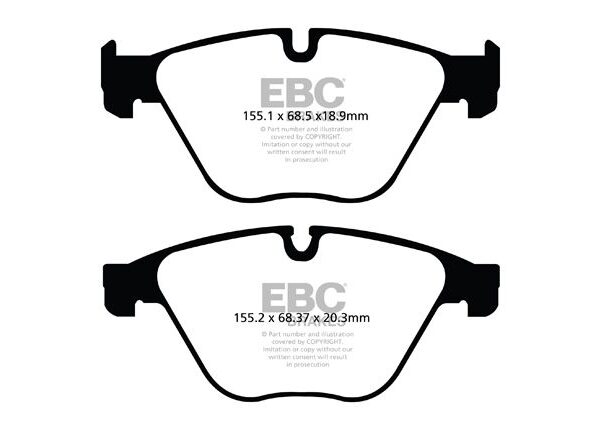

Inner Pad Thickness (mm) | 20,30 |
Inner Pad Height (mm) | 68,37 |
Inner Pad Width (mm) | 155,20 |
Outer Pad Height (mm) | 68,50 |
Pad Label | Ultimax |
UPC/EAN Code | 5039222021031 |
PREPREG is a common term for a reinforcing fabric such carbon which has been pre-impregnated with a resin system. This resin system (typically epoxy) already includes the proper curing agent. As a result, the prepreg is ready to be laid into the mold without the addition of any more resin. In order for the laminate to cure, an autoclave production process is used, a combination of high pressure and heat.
- Maximum strength and performance characterictics. In a hand layup production process, it is difficult to achieve 50% fabric and 50% resin content. Typical hand laminates, even when vacuum bagged, end up with a significant amount of excess resin. Excess resin increases brittleness and reduces overall strength properties. On the other hand, most prepregs contain around 35% resin. This is ideal for maximum cured properties and generally impossible to achieve in normal hand lamination.
- Uniformity and repeatability. The prepreg is of uniform thickness and each part coming out of the mold may theoretically be the same. Vacuum bagging technology may have some errors in processing, but prepreg ensures production consistency.
- Reduce curing time. After the thermal curing cycle, no need to wait for the standard 48 hours can be fully cured.
- Aesthetics. Although prepreg processing still requires mold preparation and demoulding, prepreg processing eliminates air bubbles, makes it easier to obtain a smooth, glossy surface as well as eliminates any seaming lines.
