ACL Race Series Main Bearing Set BMW S65
379.99€
GET IN TOUCH
At VOGUE AUTOMOTIVE, we’re committed to making sure you’re happy with our products and services—contact us anytime for help.
In Stock - Ready to Dispatch
Dispatch Monday. Order in the next 2 days 55 mins.
The ACL Race Series Main Bearing Set for BMW’s S65 engine is built for the kind of driver who doesn’t back off at redline. The 4.0-liter V8 found in the E90, E92, and E93 M3 is one of BMW’s greatest engines—rev-happy, responsive, and brutally precise. But anyone who’s pushed one hard knows its weak point: rod and main bearing wear. ACL’s Race Series bearings are made to fix that. They replace that risk with strength, stability, and confidence when oil temps rise and revs stay pinned.
Each bearing uses ACL’s proven tri-metal construction. A hardened steel backing adds rigidity, a copper-lead layer provides strength under load, and a precision overlay maintains a stable oil film at high pressure. Together, they keep friction low and oil control steady through full-throttle acceleration, sharp shifts, and long, high-RPM runs.
The materials used here are the same trusted in top-tier motorsport engines—built to endure stress, heat, and punishment. They hold consistent clearances, resist fatigue, and maintain oil pressure where it counts most. That means smoother operation, better cooling, and a bottom end that can handle the kind of abuse only a high-revving S65 can dish out.
Installation is clean and precise. These bearings are a direct-fit replacement for the S65, requiring no machining or modification. You get factory geometry with race-ready strength, a combination that brings reliability without compromise.
For M3 owners chasing the perfect balance of precision and durability, ACL Race Series bearings are a must. They reinforce the core of your S65, keeping it cool, smooth, and confident every time you push through the gears—or hang near 8,400 RPM just because you can.
FEATURES
- High-strength overlay plate: Reduced thickness improves fatigue resistance, allowing the bearings to handle the extreme stress and high-RPM demands of the S65 V8.
- Hardened steel backs: Reinforce the bearing lining to provide solid support and enhance retention in the housing during hard acceleration and sustained high loads.
- Increased crush: Ensures improved bearing grip and stability within the housing, maintaining precise alignment even under heavy load and temperature changes.
- No flash plating: Eliminating flash plating on the bearing backs improves heat transfer and maximizes surface grip between the bearing and housing.
- Optimized eccentricity: Compensates for bore distortion at high RPM, helping to form a strong hydrodynamic oil film for consistent lubrication.
- ¾-grooved main bearings: Enhance oil flow to connecting rod bearings while maintaining a large load-carrying surface area for better crankshaft support.
- Tight wall tolerances: Precision manufacturing ensures consistent bearing clearances, helping maintain stable oil pressure and reliable performance.
- Enlarged ID chamfers: Designed to accommodate the large fillet radius found on performance crankshafts, ensuring smooth rotation and long-term durability.
APPLICATIONS
- 2007–2013 BMW S65B40 E90 M3 4.0L
- 2007–2013 BMW S65B40 E92 M3 4.0L
- 2008–2013 BMW S65B40 E93 M3 4.0L
NOTES
Specifications for STD size only.

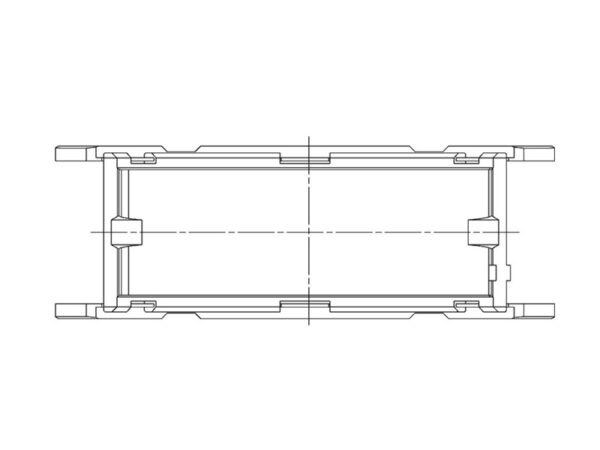

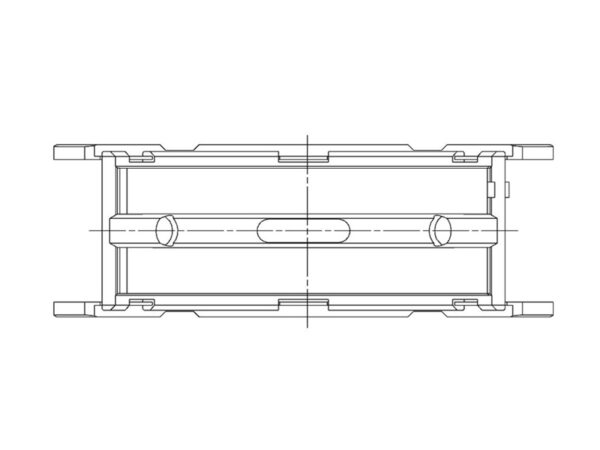

Includes upper and lower bearing shells for a complete main bearing replacement.
ADDITIONAL INFORMATION:
| Brand | |
|---|---|
| Half Type | Upper & lower |
| Material | F780 |
| Min. Std Shaft Size | 59,971 mm / 2.3611 in |
| Max. Std Shaft Size | 59,99 mm / 2.3618 in |
| Min. Std Tunnel Size | 65 mm / 2.5591 in |
| Max. Std Tunnel Size | 65,019 mm / 2.5598 in |
| Max Wall at Crown | 2,5 mm / 0.0984 in |
| Max Overall Length | 21,9 mm / 0.8622 in (1581H) |
