Acl race series main bearing set bmw m20 m50 m52 m54
Acl race series main bearing set bmw m20 m50 m52 m54 - image 2
Acl race series main bearing set bmw m20 m50 m52 m54 - image 3
Acl race series main bearing set bmw m20 m50 m52 m54 - image 4
Acl race series main bearing set bmw m20 m50 m52 m54 - image 5

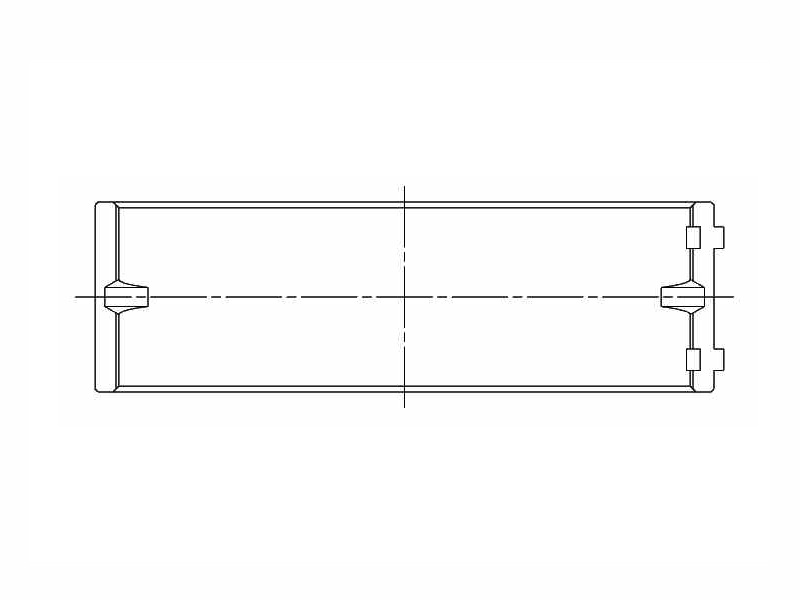

1538h l

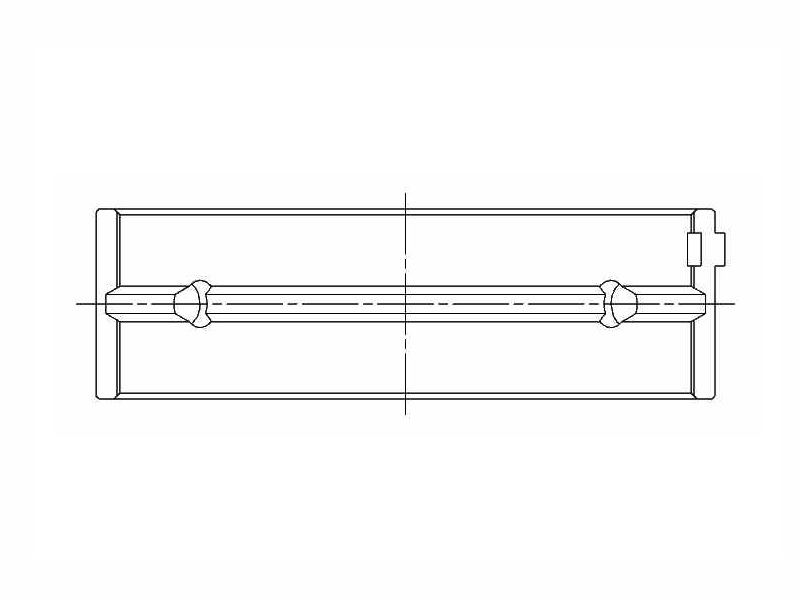

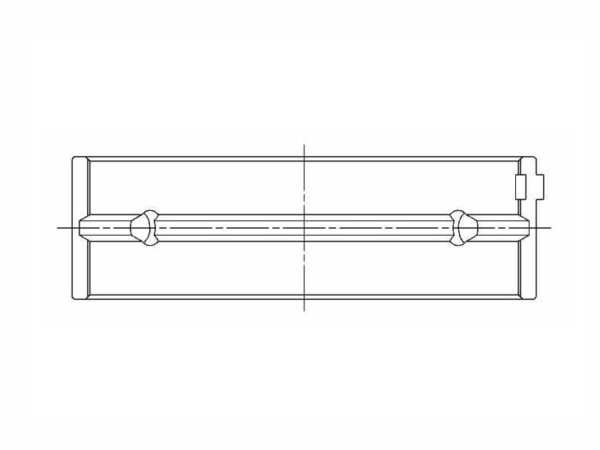

1538h u

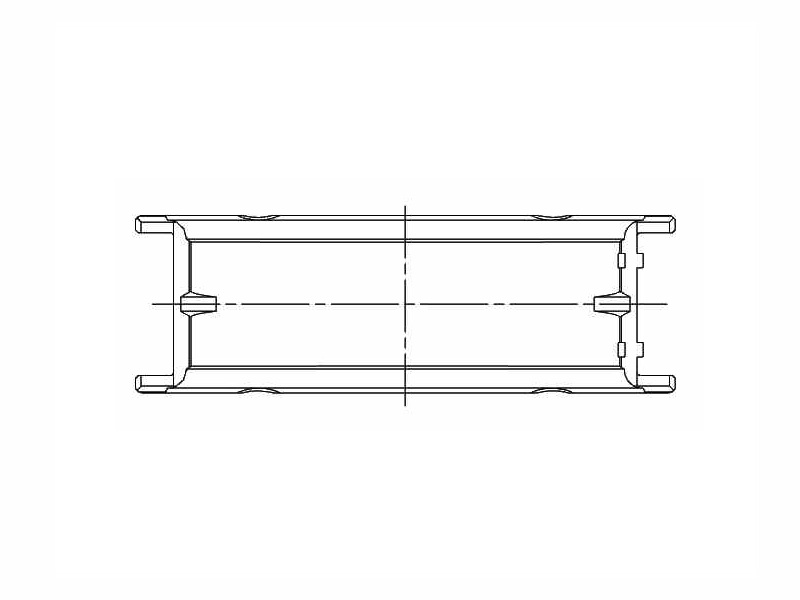

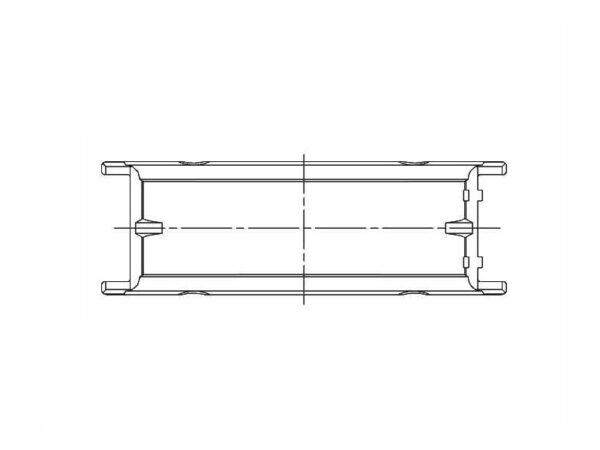

1539h l

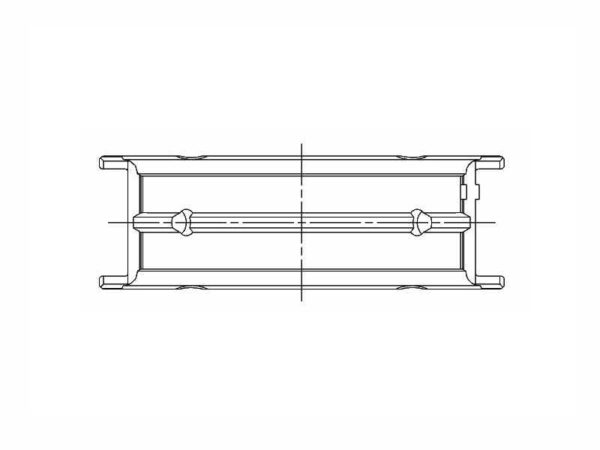

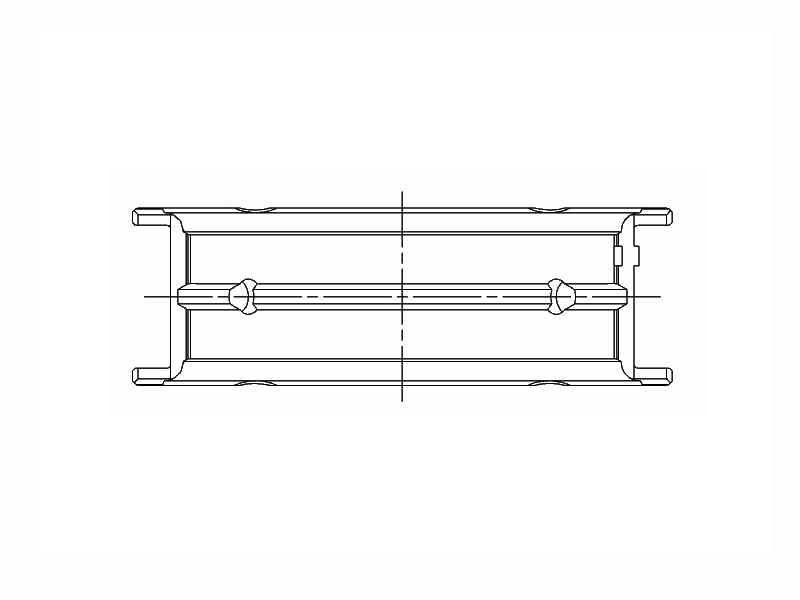

1539h u

NEED HELP? CONTACT US
In Stock - Ready to Dispatch Dispatch today. Order in the next 9 mins.
WORLDWIDE SHIPPING
EASY RETURNS
SECURE SHOPPING
24/7 SUPPORT
WORLDWIDE SHIPPING
EASY RETURNS
SECURE SHOPPING
24/7 SUPPORT

The ACL Race Series Main Bearing Set for BMW M20, M50, M52, and M54 engines is built for people who expect their straight-six to take punishment—and come back asking for more. These engines are known for their smoothness and reliability, but once you start adding power, extending RPMs, or pushing through long track sessions, the factory bearings start to feel the strain. That’s where ACL’s Race Series bearings step in, giving you the kind of strength and stability that keeps everything spinning smoothly under serious pressure.

Each bearing is made using ACL’s trusted tri-metal construction. A hardened steel backing provides rigidity, a copper-lead core handles the load, and a precision overlay maintains a steady oil film even under high heat. This layered design reduces friction, keeps oil pressure consistent, and helps balance crank rotation through aggressive driving or sustained high-speed runs.

The material and design come straight from motorsport applications, tested in engines that live at redline. With exceptional fatigue strength and tight, consistent clearances, these bearings deliver reliable oil control and temperature stability even under constant stress. It’s the kind of upgrade you install once and trust every time you push your car to its limits.

Installation is straightforward. ACL designed these bearings as a direct-fit upgrade for BMW’s M20, M50, M52, and M54 engines—no machining or modification needed. Everything fits with factory precision but carries the endurance of race-ready construction.

For those building or rebuilding engines found in the E30, E36, E39, E46, or Z3/Z4, ACL Race Series bearings are more than just insurance—they’re the foundation for confidence. From street builds to track-prepped machines, they keep your BMW’s bottom end strong, cool, and perfectly balanced, no matter how hard you drive.

ADDITIONAL INFORMATION:

Brand

Half Type

Identical halves
Material

F780
Min. Std Shaft Size

59,971 mm / 2.3611 in
Max. Std Shaft Size

59,99 mm / 2.3618 in
Min. Std Tunnel Size

65 mm / 2.5591 in
Max. Std Tunnel Size

65,019 mm / 2.5598 in
Max Wall at Crown

2,488 mm / 0.0980 in
Max Overall Length

20 mm / 0.7874 in (1538H)
24,94 mm / 0.9819 in (1539H(F)

PREPREG is a common term for a reinforcing fabric such carbon which has been pre-impregnated with a resin system. This resin system (typically epoxy) already includes the proper curing agent. As a result, the prepreg is ready to be laid into the mold without the addition of any more resin. In order for the laminate to cure, an autoclave production process is used, a combination of high pressure and heat.

  • Maximum strength and performance characterictics. In a hand layup production process, it is difficult to achieve 50% fabric and 50% resin content.  Typical hand laminates, even when vacuum bagged, end up with a significant amount of excess resin. Excess resin increases brittleness and reduces overall strength properties. On the other hand, most prepregs contain around 35% resin. This is ideal for maximum cured properties and generally impossible to achieve in normal hand lamination.
  • Uniformity and repeatability. The prepreg is of uniform thickness and each part coming out of the mold may theoretically be the same. Vacuum bagging technology may have some errors in processing, but prepreg ensures production consistency.
  • Reduce curing time. After the thermal curing cycle, no need to wait for the standard 48 hours can be fully cured.
  • Aesthetics. Although prepreg processing still requires mold preparation and demoulding, prepreg processing eliminates air bubbles, makes it easier to obtain a smooth, glossy surface as well as eliminates any seaming lines.
