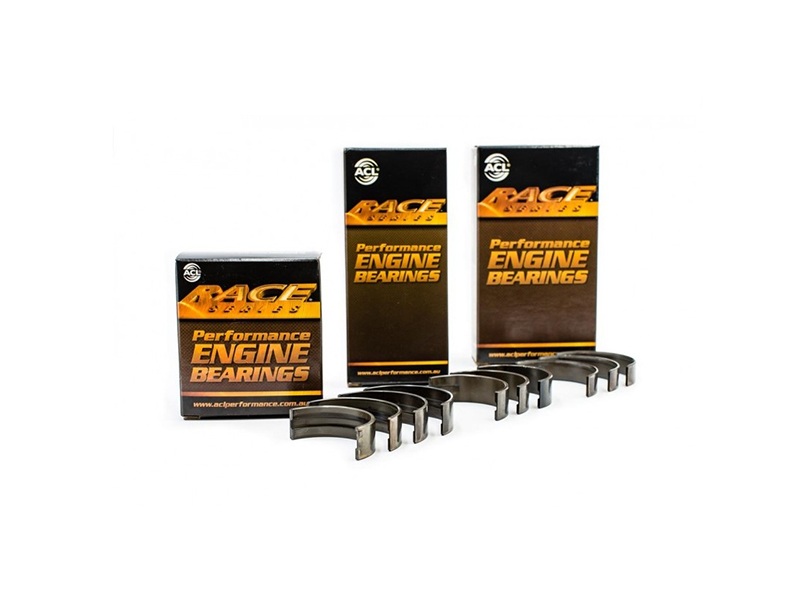

ACL Race Series Main Bearing Set BMW B58

409.99€

Sizes

Clear

NEED HELP? CONTACT US

In Stock - Ready to Dispatch Dispatch today. Order in the next 5 hrs 57 mins.

WORLDWIDE SHIPPING

EASY RETURNS

SECURE SHOPPING

24/7 SUPPORT

WORLDWIDE SHIPPING

EASY RETURNS

SECURE SHOPPING

24/7 SUPPORT

The ACL Race Series Main Bearing Set for BMW’s B58 engine is built for those who push their cars hard and expect the engine to hold up. The B58 is already a powerhouse, but once boost rises and temperatures climb, factory bearings can reach their limits. ACL’s Race Series bearings are made for that exact moment—when high load, heat, and oil pressure fluctuations demand more than stock components can deliver.

Each bearing features ACL’s proven tri-metal design: a hardened steel backing for rigidity, a copper-lead intermediate layer for strength, and a precision overlay that maintains a stable oil film even under extreme conditions. This structure keeps friction down, protects the crankshaft, and ensures smooth operation at high RPMs and sustained boost.

Built using materials trusted in motorsport, these bearings offer superior fatigue resistance, excellent embeddability, and consistent oil pressure across the rev range. That means better protection, tighter clearances, and long-term reliability for tuned or track-driven engines.

Installation is simple and precise. ACL designed these bearings as a direct-fit replacement for the BMW B58 engine—no machining, no modification, just a perfect OEM fit paired with race-grade strength. Compatible with models such as the M240i, M340i, M440i, and Z4 M40i, they bring peace of mind to any high-performance setup.

For enthusiasts who drive their BMWs like they were meant to be driven, ACL Race Series bearings are the hidden upgrade that keeps everything together. Strong, stable, and built to last, they help your B58 stay cool, balanced, and ready for the next pull—on the street, strip, or circuit.

FEATURES

High-strength overlay design: Developed for the turbocharged B58’s high cylinder pressures, the ACL Race Series main bearings feature a reduced-thickness overlay plate that improves fatigue strength under extreme boost and RPM conditions.
Hardened steel backing: Each bearing shell includes a hardened steel backing to provide extra support for the bearing lining—essential for maintaining housing stability under the heavy torque loads typical of tuned B58 engines.
Enhanced crush retention: Designed with increased crush to keep the bearings securely seated in the block, even during rapid thermal cycling or extended high-RPM operation.
Improved heat transfer: By eliminating flash plating on the bearing backs, ACL ensures better thermal conductivity, helping the B58 maintain consistent oil temperatures and prevent localized hotspots.
Optimized eccentricity: The bearing profiles are engineered with greater eccentricity to offset bore distortion at high engine speeds, supporting stable oil film formation and smooth crank rotation.
3/4 grooved main bearings: This configuration balances oil delivery and bearing surface area, ensuring consistent lubrication and pressure to the connecting rod bearings—vital for performance under sustained boost.
Tight wall tolerances: Manufactured with strict dimensional precision, allowing consistent oil clearances and maintaining reliable lubrication throughout the B58’s rev range.
Large chamfer clearances: Enlarged ID chamfers accommodate the generous fillet radii found on performance crankshafts, ensuring proper fitment for built or forged B58 bottom ends.

Acl structure

APPLICATIONS

2016–2021 BMW B58 F20/F21 M140i
2016–2021 BMW B58 F22/F23 M240i
2016–2019 BMW B58 F30/F31/F34 340i
2016–2019 BMW B58 F32/F33/F36 440i
2017–present BMW B58 G01 X3 M40i
2018–present BMW B58 G02 X4 M40i
2018–present BMW B58 G05 X5 40i 45e
2019–present BMW B58 G06 X6 40i
2019–present BMW B58 G07 X7 40i
2016–2022 BMW B58 G11 740i 745e
2018–present BMW B58 G14/G15/G16 840i
2019–present BMW B58 G20/G21 M340i
2020–present BMW B58 G22/G23/G26 M440i
2017–2023 BMW B58 G30/G31 540i
2018–present BMW B58 G29 Z4 M40i
2021–present BMW B58 G42 M240i

NOTES

Specifications for STD size only.

Includes upper and lower bearing shells for a complete main bearing replacement.

ADDITIONAL INFORMATION:

Brand	ACL
Half Type	Upper & lower
Material	F780
Min. Std Shaft Size	55 mm / 2.1654 in
Max. Std Shaft Size	55 mm / 2.1654 in
Min. Std Tunnel Size	60 mm / 2.3622 in
Max. Std Tunnel Size	60,013 mm / 2.3627 in
Max Wall at Crown	2,5 mm / 0.0984 in

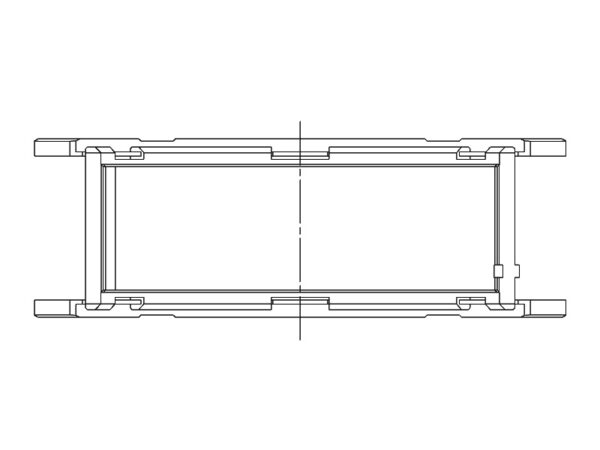

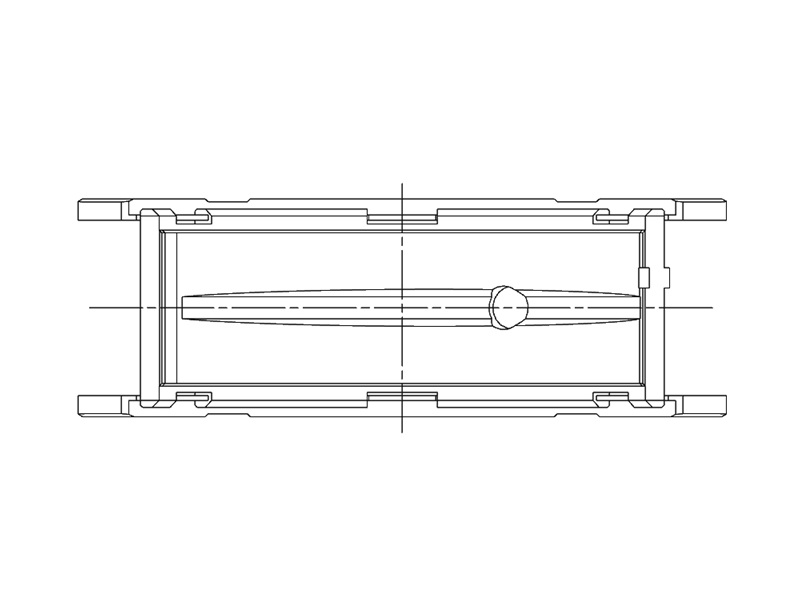

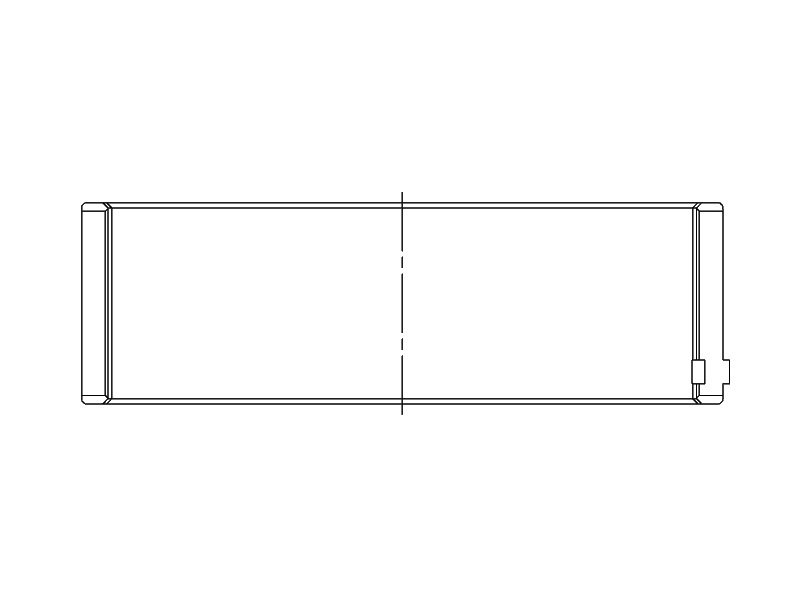

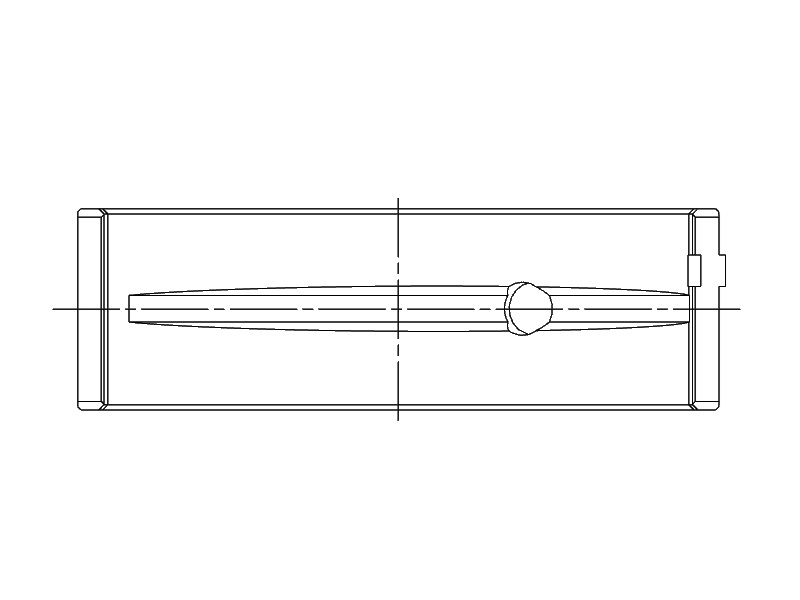

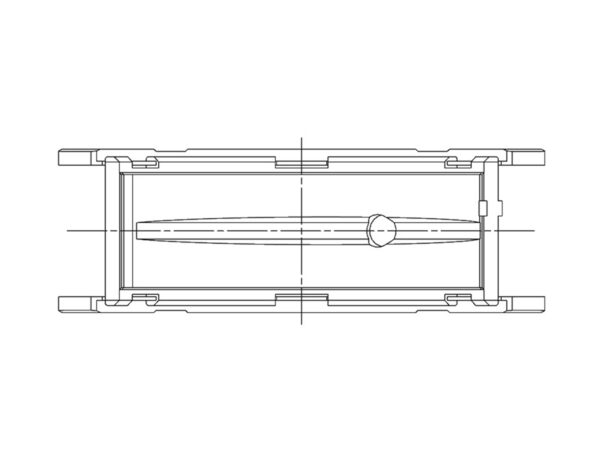

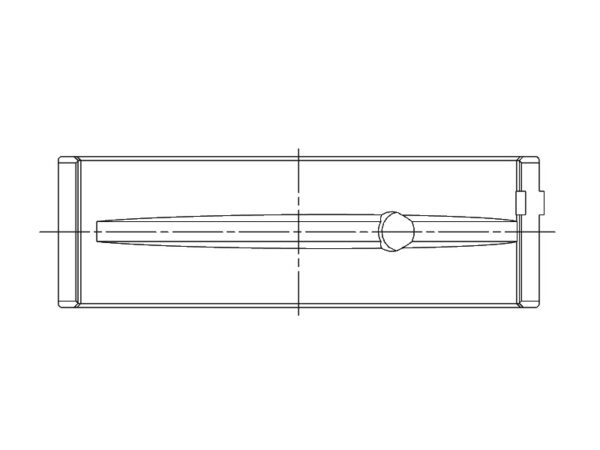

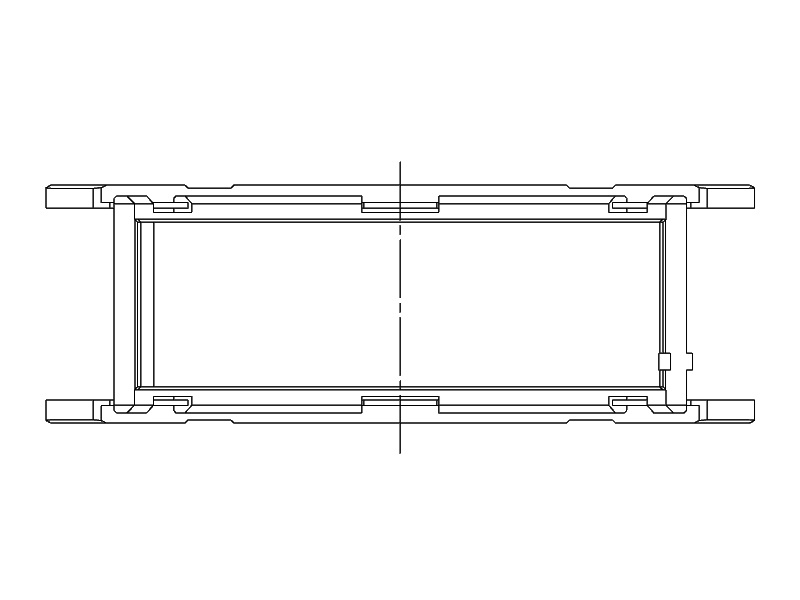

Max Overall Length	18,6 mm / 0.7323 in (1512H-U) 24,9 mm / 0.9803 in (1513H-U) 18,6 mm / 0.7323 in (1512H-L) 24,9 mm / 0.9803 in (1513H-L)
